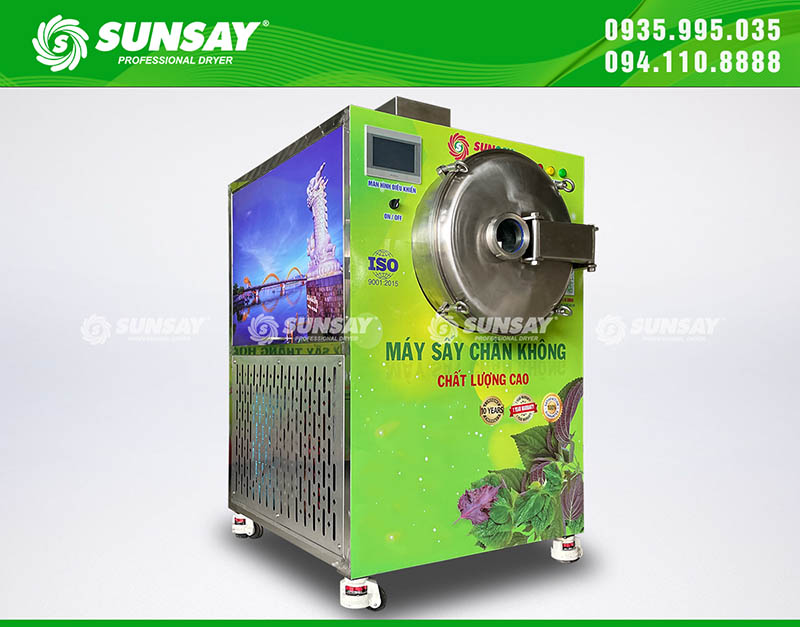

SUNSAY 50 liter vacuum dryer – Can dry most types of products, smart design, high performance

When you need to dry your products, a vacuum dryer can be a good choice thanks to its ability to dry at low temperatures, which helps preserve the quality of the product. In the list of vacuum dryers currently on the market, the SUNSAY 50 liter vacuum dryer has been rated as one of the most effective products.

SUNSAY not only stands out with its smart design but also has a variety of capacities, making it the top choice for drying a variety of products. From vegetables, frozen foods, fruits, cashews, coffee, pepper to agricultural products, industrial food and medicine, SUNSAY has the ability to flexibly adapt.

Concept of vacuum drying

Vacuum dryer is an advanced drying technology based on the difference in steam pressure between the product surface and the surrounding environment. This process takes place in a near-vacuum environment, where the product is stored completely discreetly.

First, the products that need to be dried are placed in a completely sealed container, ensuring that no outside air can penetrate. Then, using a vacuum pump, the environment in the chamber is created at a lower pressure than the outside environment, creating a pressure difference between the product surface and the surrounding air.

With low pressure, the temperature required to dry the product can be lower than with other drying methods. Usually, the vacuum drying process takes place at a temperature of about 30-40 degrees Celsius, helping to preserve the product structure and retain more nutrients than drying at higher temperatures. In particular, vacuum drying technology is very useful in preserving the quality and nutritional value of products in the food industry.

Technical specifications of 50 liter vacuum dryer

– 50 liter vacuum dryer model: SS-05VD

– Input capacity: 50 liters/batch

– Large tray with an area of ​​2.1 m2 and dimensions of 350 x 600 x 50mm will help you dry many products at the same time.

– Vacuum dryers have flexible drying time from 10 to 20 hours/batch, depending on the product. Drying temperature up to 70 degrees Celsius and heating capacity of 3 kW help ensure product quality after the drying process.

– Vacuum capacity: 1.5 kW

– Heat circulation pump capacity: 0.75 kW

– Touch screen control system can set drying processes.

Operating principle of SUNSAY vacuum dryer

The operating principle of a vacuum dryer is based on the difference in water vapor pressure between the product surface and the surrounding environment. When the water vapor pressure on the surface of the product is greater than the pressure of the environment, the water in the product will evaporate and escape into the surrounding environment.

Vacuum (low pressure) is created in the vacuum dryer to reduce the pressure in the drying chamber. There are 2 main effects:

• Reducing environmental pressure promotes the evaporation of water from the product into the surrounding environment. The machine structure includes three main parts: drying chamber, heating part and vacuum pump.
• The pressure difference allows the drying process to take place at low temperatures, usually around 40 degrees Celsius. This is important to preserve the structure and quality of the dried product, especially in the case of foods. and sensitive medical products.

Thanks to this principle, the vacuum dryer not only ensures that the product is dried quickly, but also retains the quality and nutritional value of the product.

Advantages of SUNSAY 50 liter vacuum dryer

Faster drying time: Vacuum dryers often dry faster than conventional drying methods.

Retains the product’s characteristic properties: Vacuum drying helps preserve the product’s characteristic properties, including flavor, color and nutritional value. This is very important for high-demand manufacturing industries such as food.

Store for longer periods of time: Products dried with a vacuum dryer can often be stored for longer periods of time, as the drying process reduces moisture and prevents the growth of bacteria and mold.

Simple operation: Vacuum dryers are often controlled through programming available in the electrical cabinet, helping to reduce operating costs and make the drying process easy and effective.

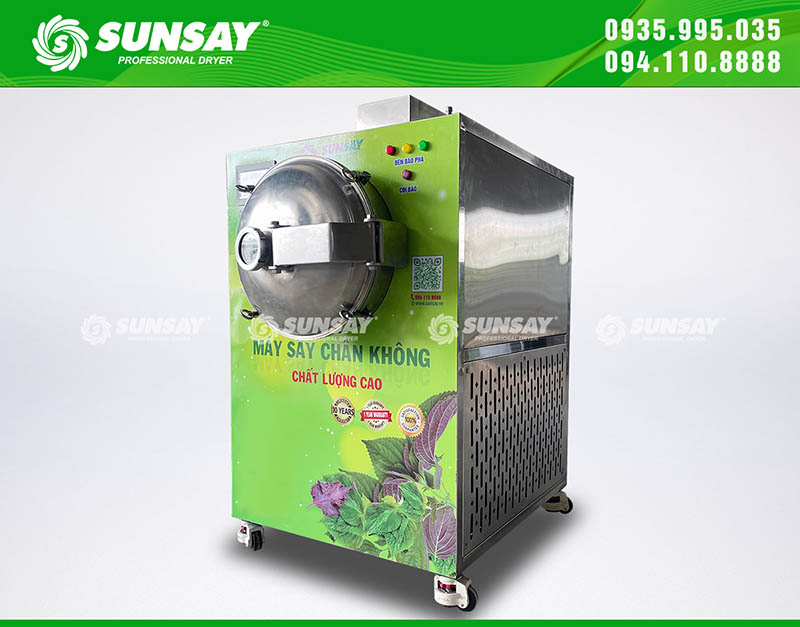

The machine has a beautiful and neat design

Ensuring safety: The details of vacuum dryers are often made sturdy to ensure user safety. Because the drying process is based on low pressure, customers can be completely assured of safety when using the machine.

Increase output: The rapid drying ability of vacuum dryers can increase product output for businesses, helping to improve production efficiency and reduce drying time.

Where to buy SUNSAY 50 liter vacuum dryer?

With good quality, smart design and efficient drying of a variety of products, SUNSAY vacuum dryers are trusted and used by many customers. In addition, we also provide professional consulting and after-sales support services, helping customers use products optimally and achieve the highest efficiency.

For detailed advice, please visit the website: dryer.com.vn  or immediately contact Hotline: +84 935.995.035 or switchboard number: +84 94.110.8888 for support.
